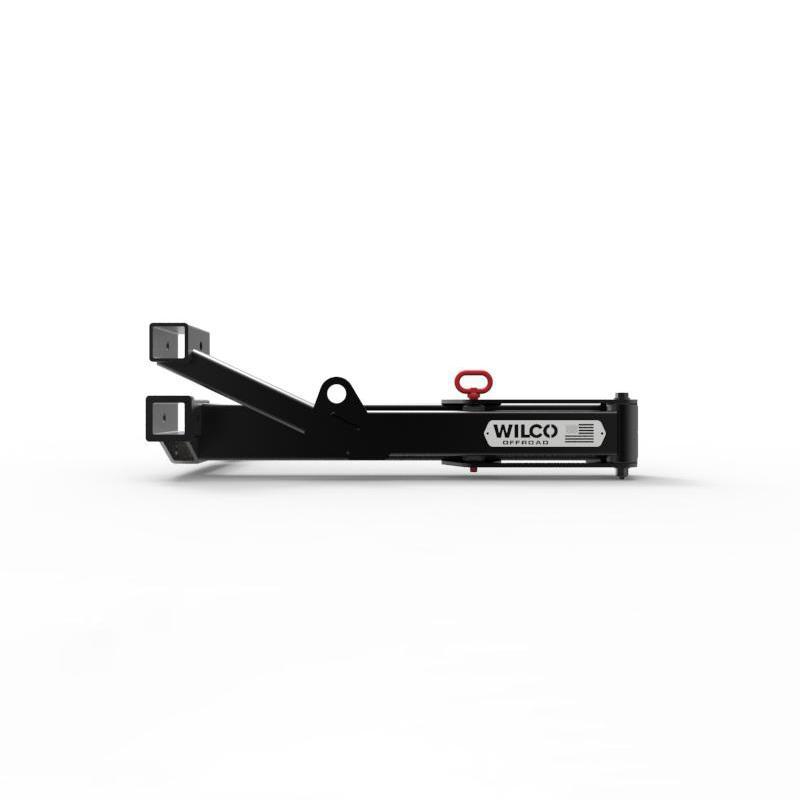

Hitchswing Hitchgate Wilco Offroad individual display

Wilco Offroad

Hitchswing

Sale price$868.00
SKU: Wilco-HS32220
Quantity:

Hitchswing

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929
It’s all about options

We love options and do all we can to avoid being painted in a corner. The Hitchswing™ puts an exclamation point on making the back of your vehicle a freely accessed area once again.

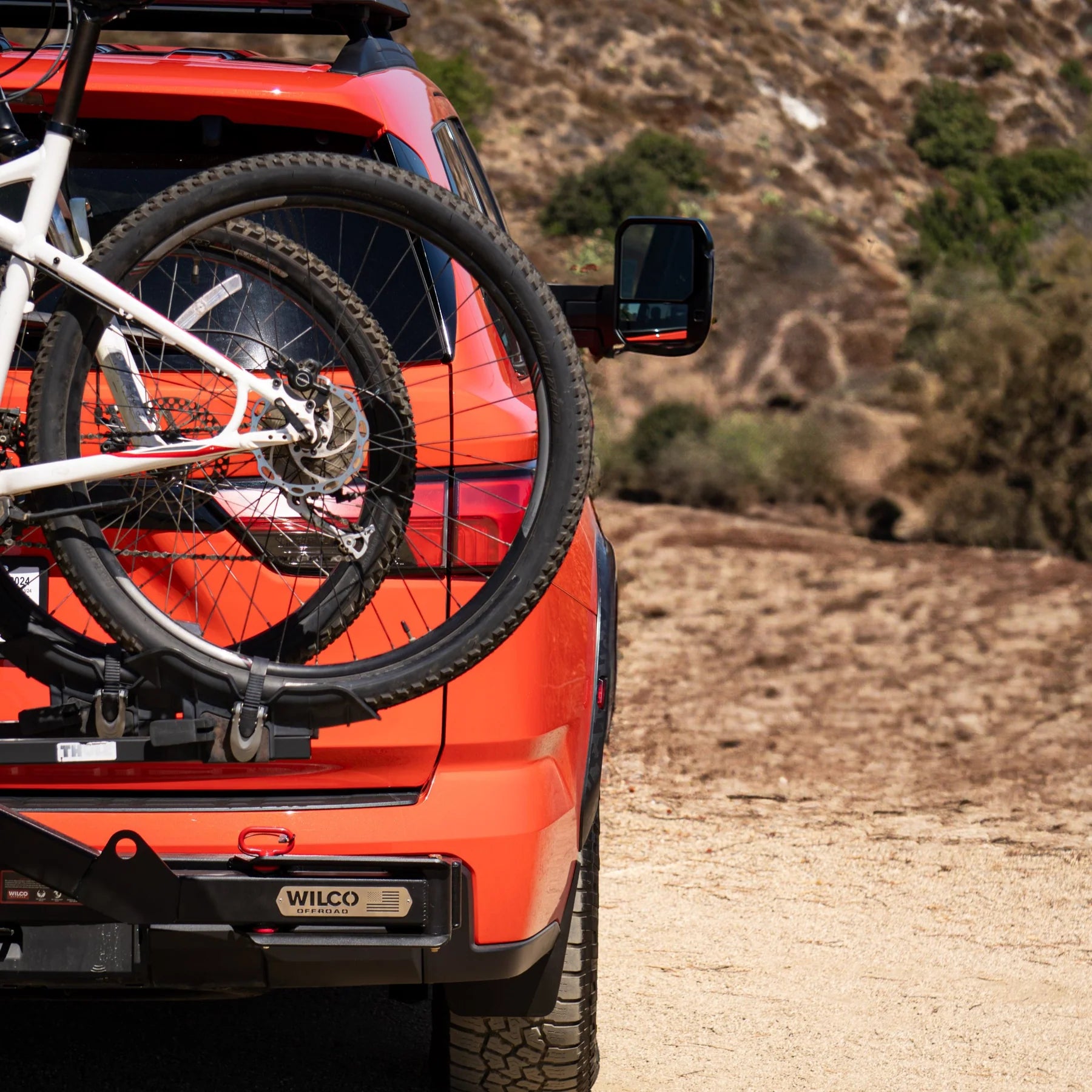

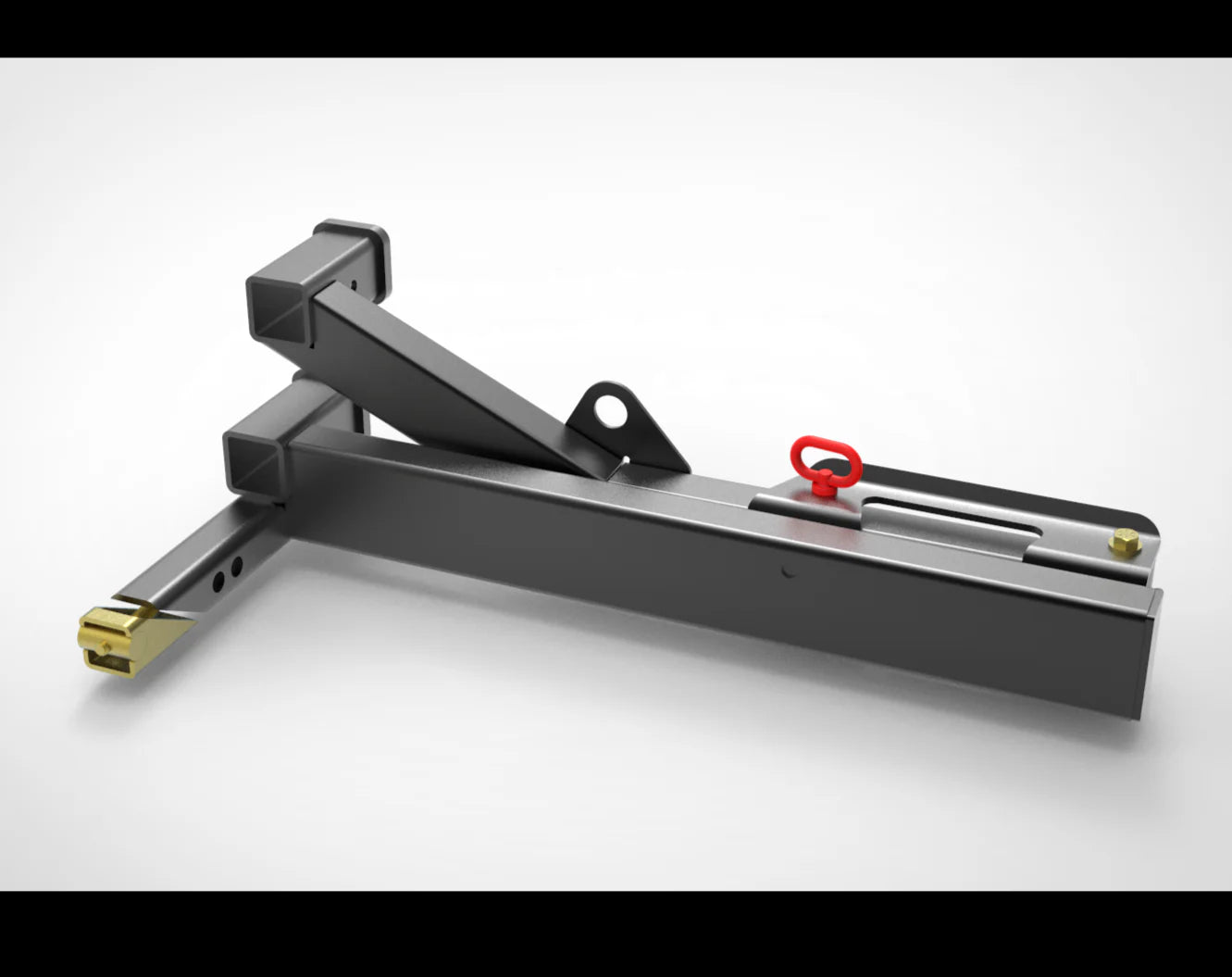

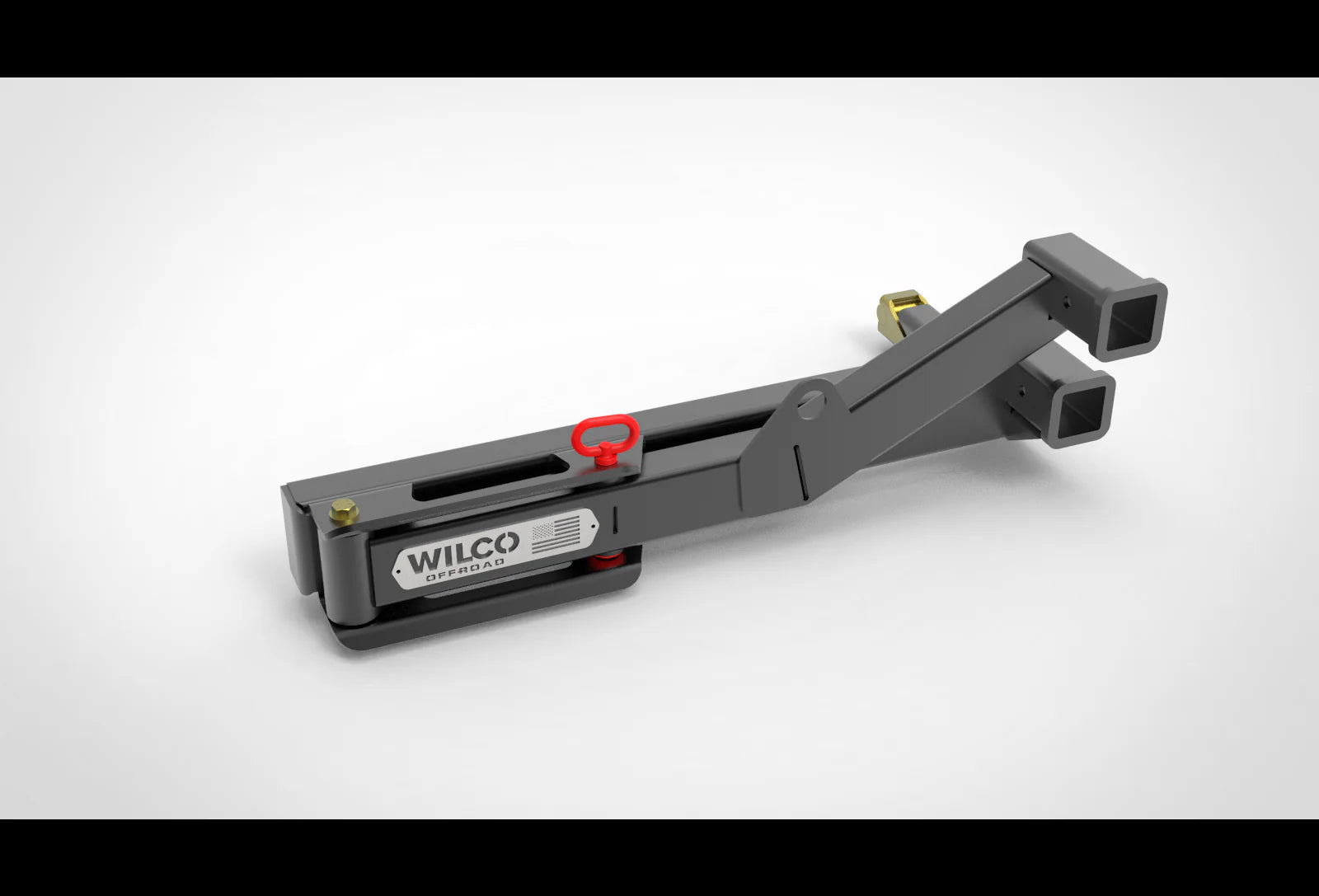

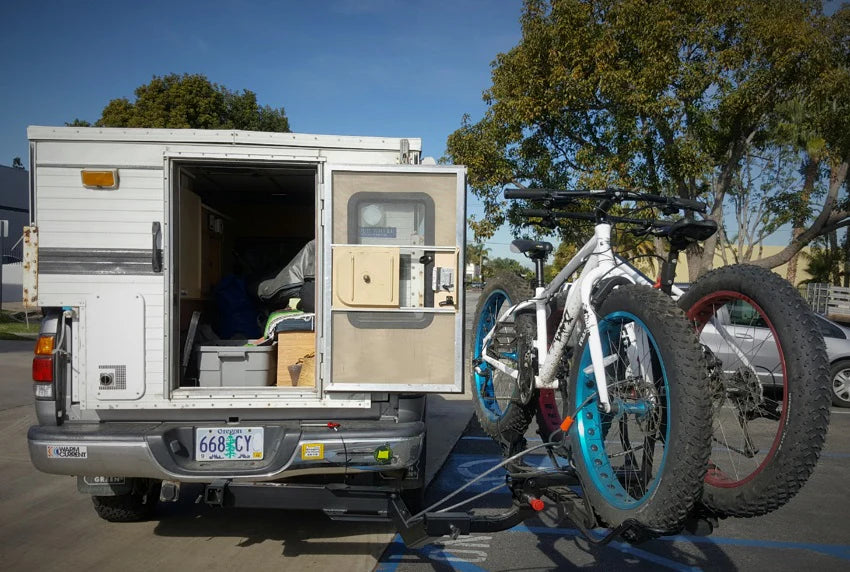

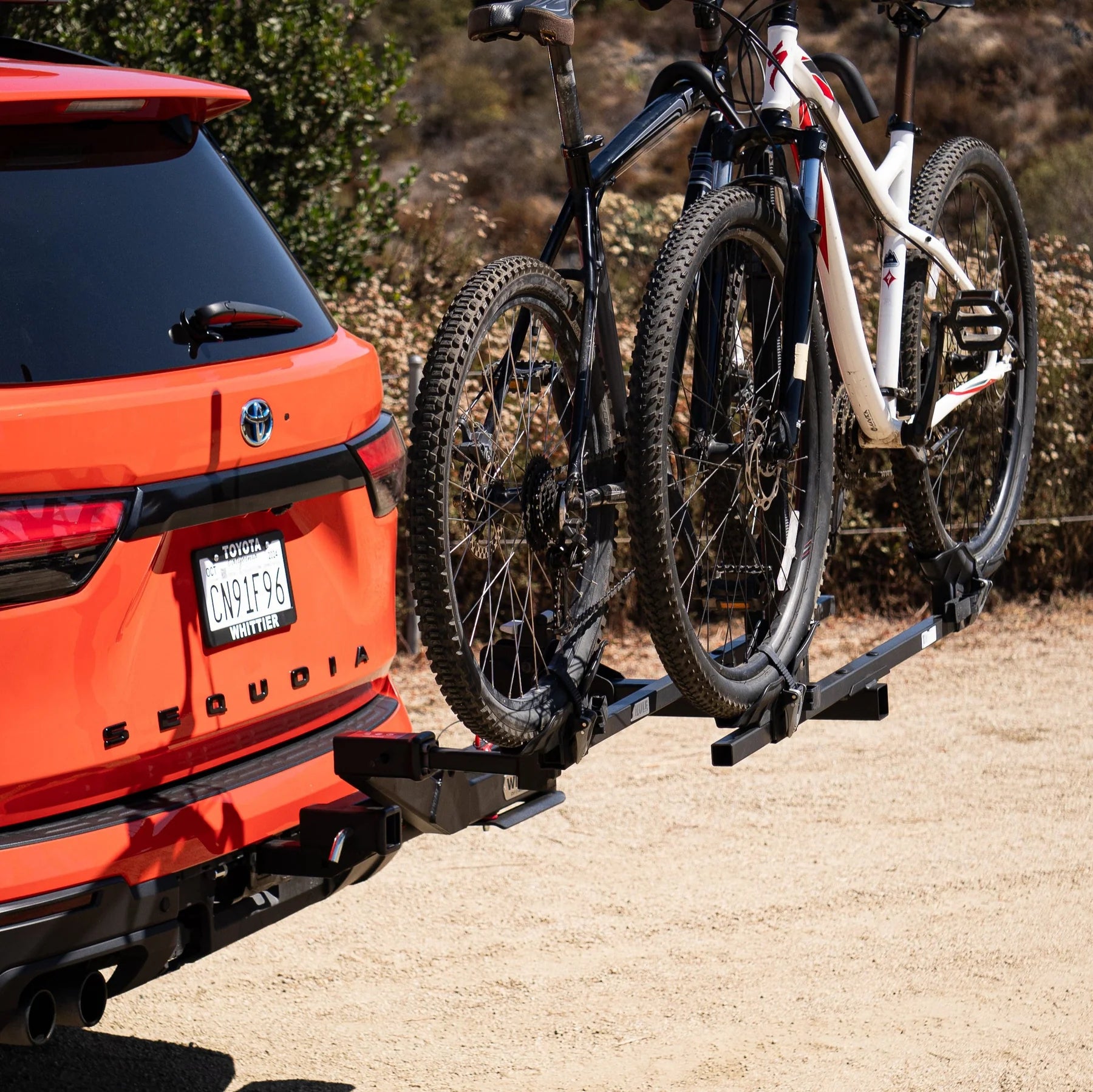

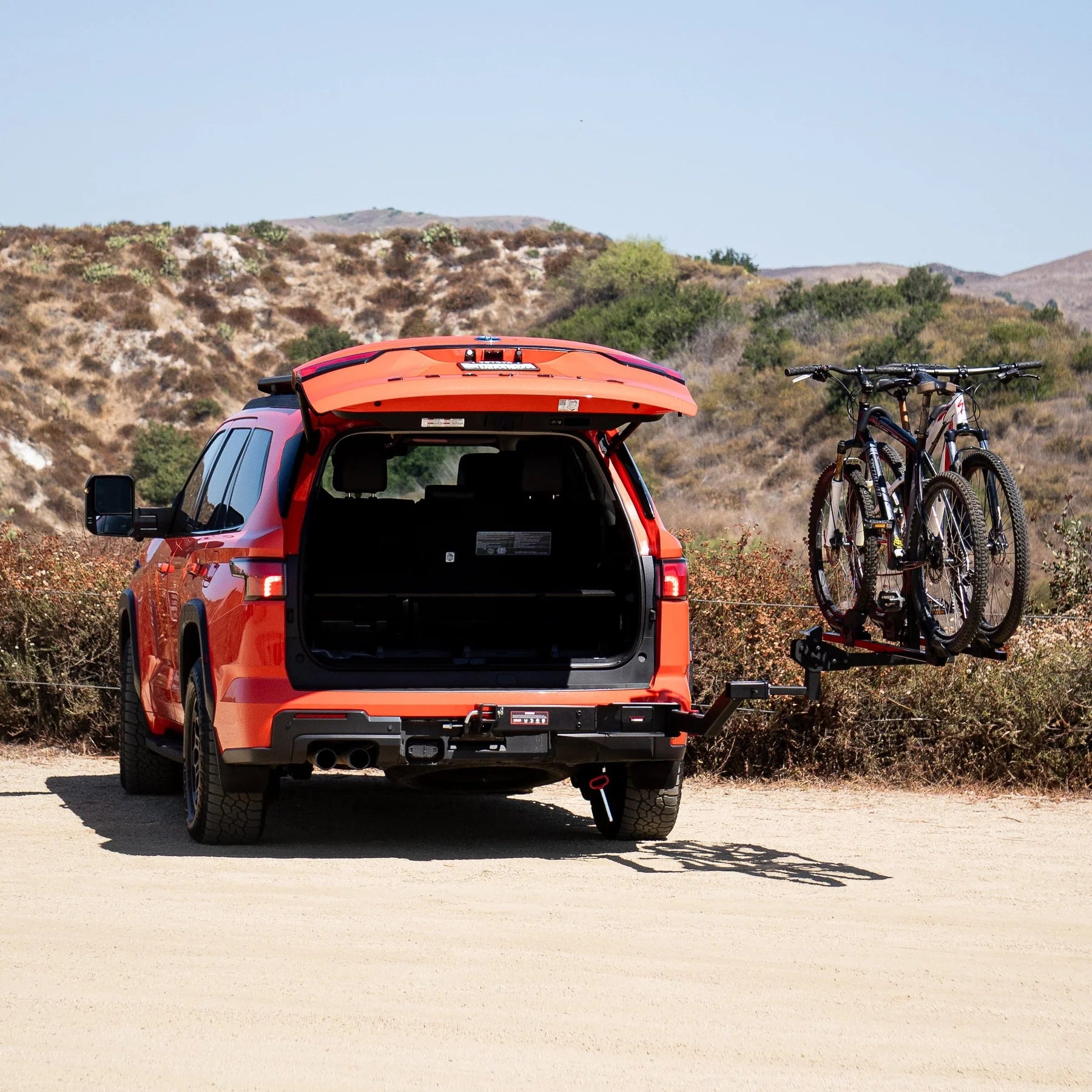

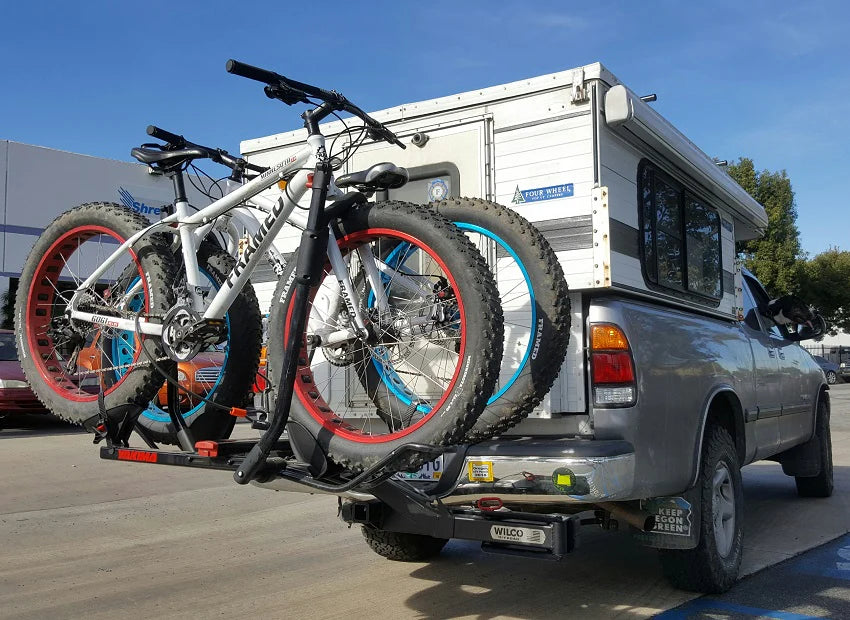

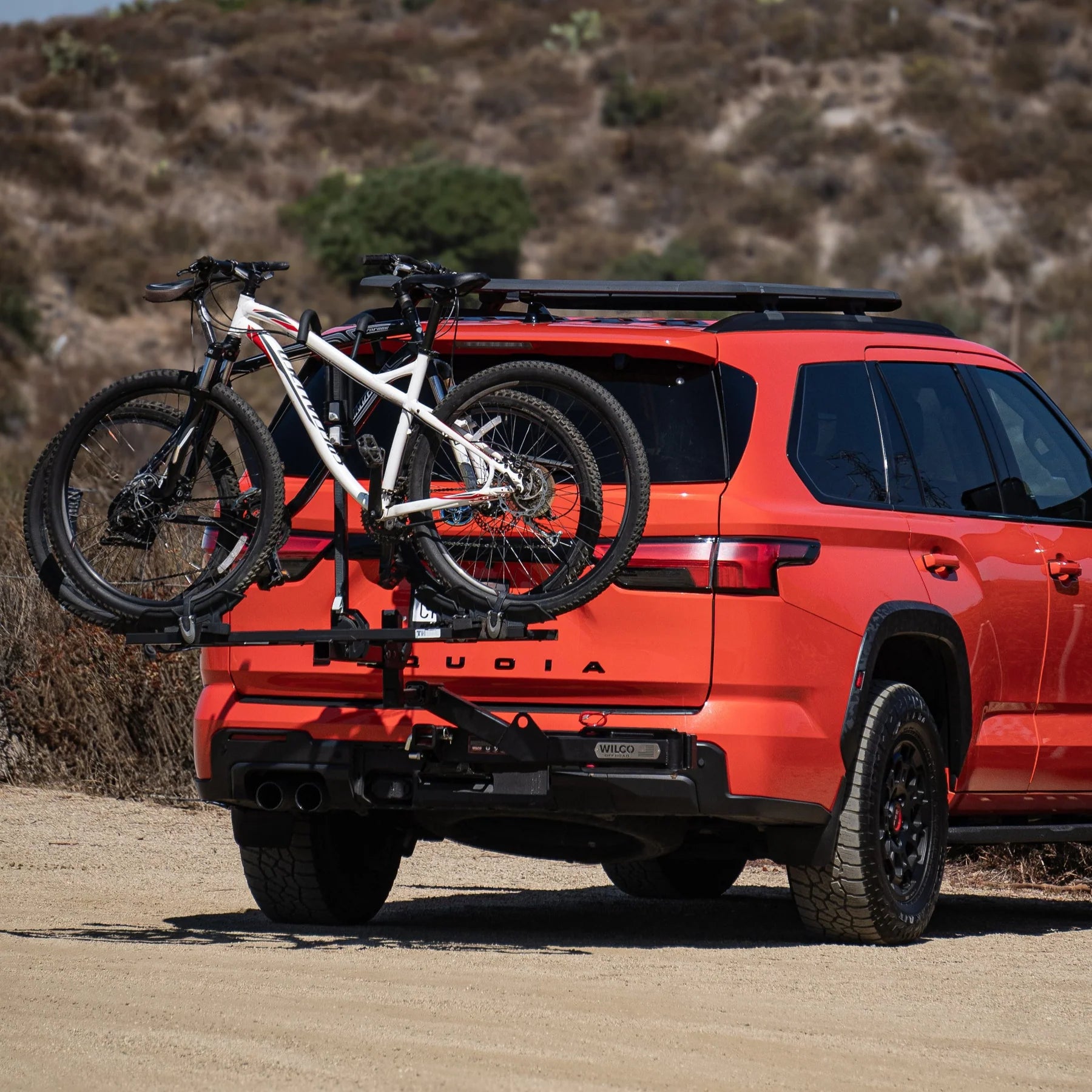

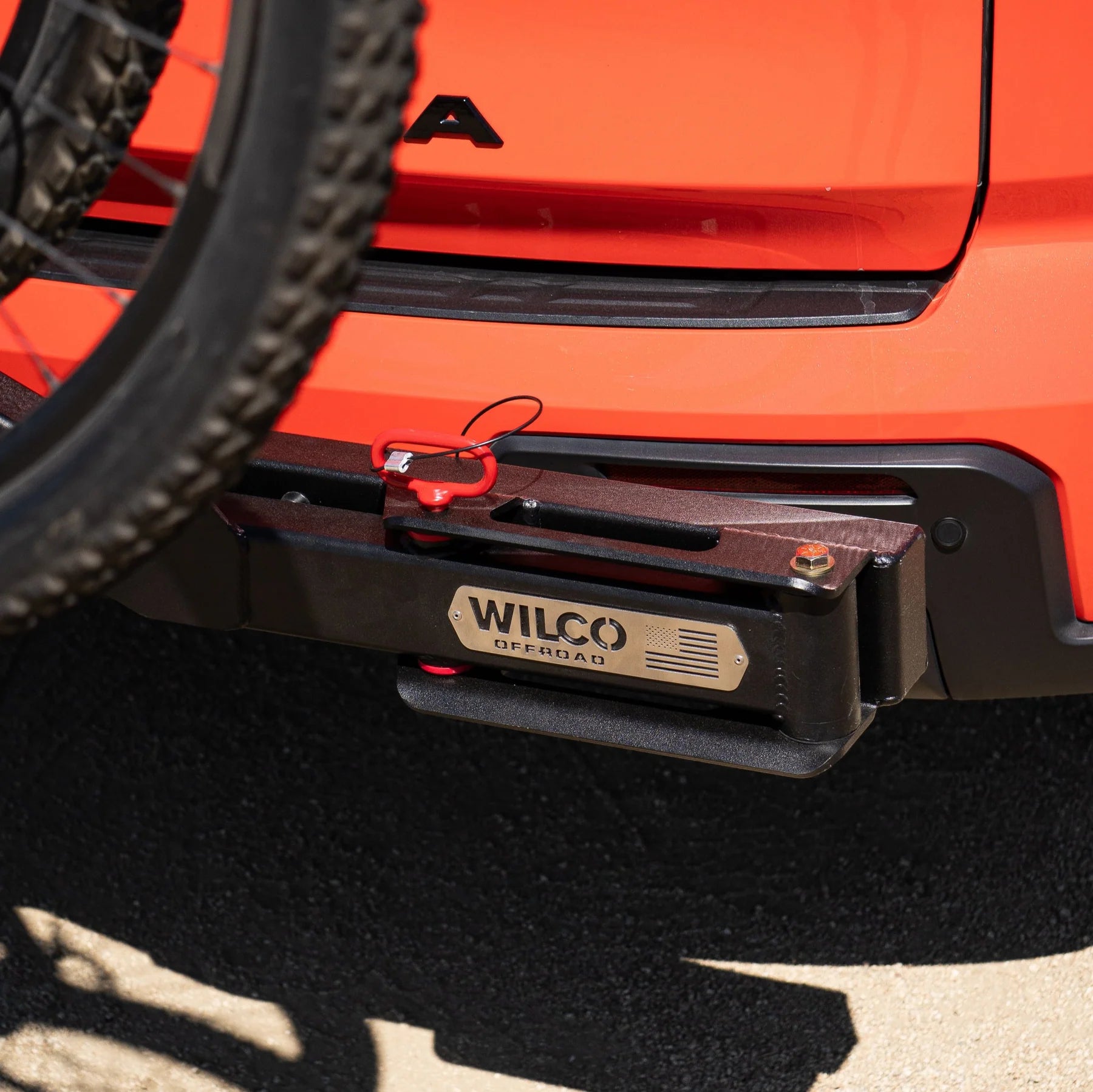

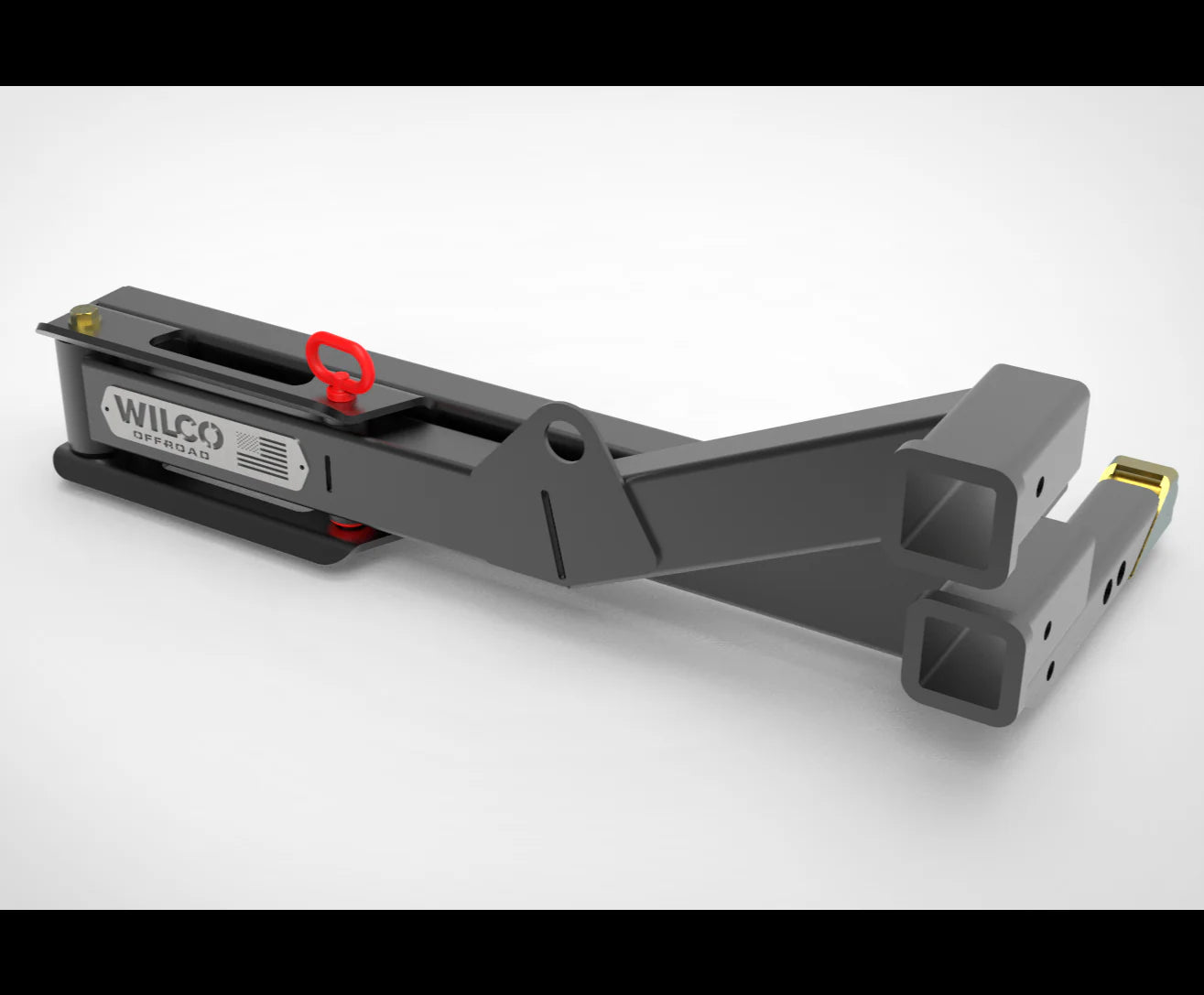

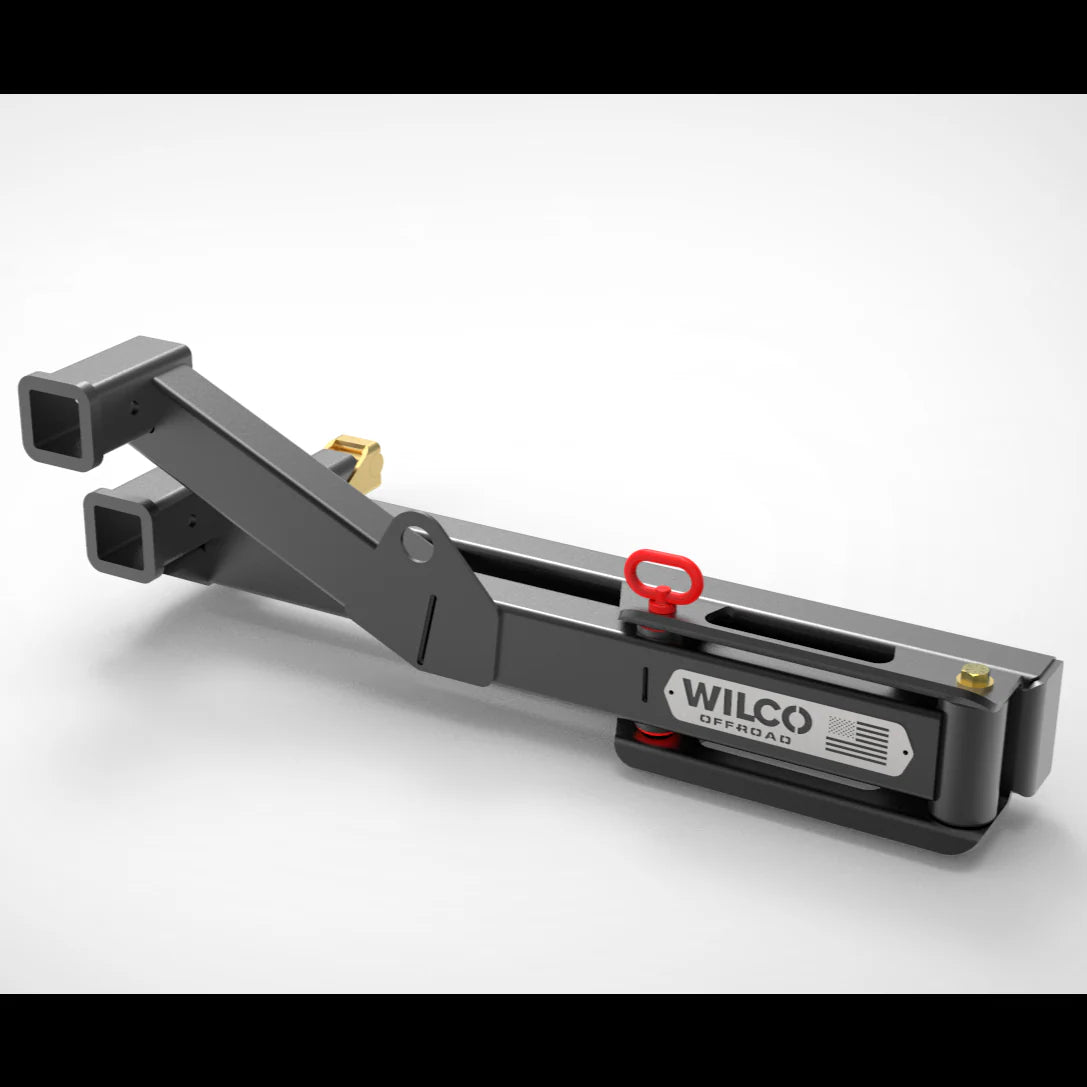

The Hitchswing adds a secondary 2” receiver hitch mated to a swinging arm. Slide into the Hitchswing your favorite bike rack, cargo rack, or whatever-rack, pull the pin, and swing that entire load away from your vehicle. Boom! The rear hatch, tailgate, or door is free again! Now you don’t have to decide between stuff on the hitch or accessing the cooler at the gas station again.

Hitch-mounted bike racks are a godsend, but usually, that means opening the rear for a trip to the local hardware store is mostly off-limits or at least compromised. Hitch mounted cargo racks are spectacular for family road trips, but usually, that means waiting 12 hours to get into the rear of the vehicle again.

SPECS
  • Hitchswing features the same secondary receiver as our Hitchgate™ line, tow-rated at 7,500 lbs (max trailer weight) and 750 lbs (tongue weight). Not every trailer will be compatible with the full range of motion of the Hitchswing. Not every vehicle will have the same capacity as the Hitchswing. ALWAYS adhere to your vehicle’s maximum limits.
  • 30″ wide from hitch to pivot bolt, 3.5″ minimum depth from 1st hitch pin to back of support arm. 4.5″ to the next hitch pin hole. Hitchswing support arm sits at hitch height, rising only 2.5″ above the receiver. The swing-arm sits above the support arm approx. 6″.]
  • 4.5″ of clearance is required from the center of the hitch pin hole rearward for it to be compliant with the wedge lock system. You may need to relocate the spare tire from underneath or modify to gain the necessary clearance.
  • WEIGHT LIMITS: The further your load extends from the Hitchswing, the lighter your load needs to be. If your load is within 3 feet of the Hitchswing, the max. load is 300lbs. If your load extends beyond 3 feet, the limit drops to 150lbs. The further away the load is from Hitchswing the heavier the load is on it AND your vehicle.
